USHIO UXR-300BF Ceramic Xenon Lamp 5002534

UXR-300BF

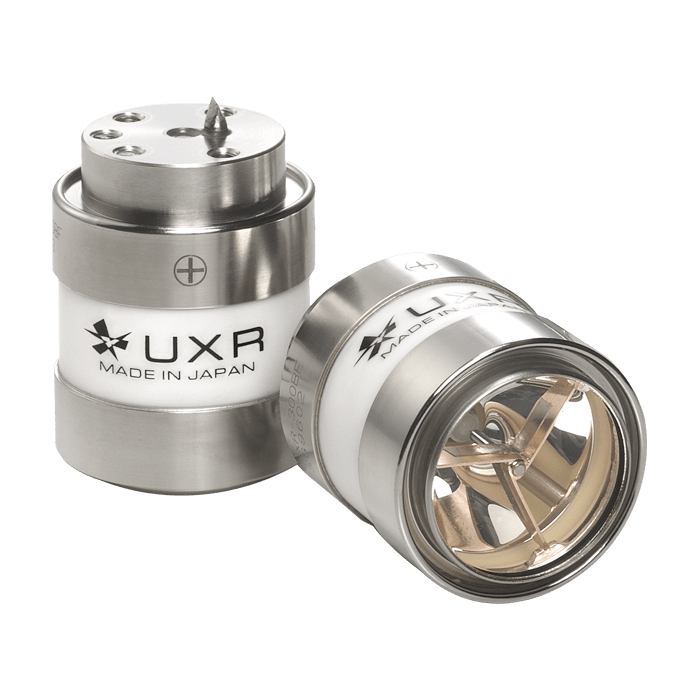

The USHIO UXR-300BF is a high-performance 300-watt ceramic xenon short-arc lamp engineered for demanding scientific, medical, and industrial applications. Delivering 4,500 lumens of intense, daylight-balanced illumination at 6100K, it provides exceptional color accuracy and spectral continuity across the UV-to-visible range. With a constant current of 20 amps and a radiant output of 50 watts, this lamp is built for precision optical systems where stability and output consistency are critical.

Specifications

Wattage: 300 Watts

Voltage: 15 Volts

Constant Current: 20 Amps

Current Range: 18-21 Amps

Radiant Output: 50 Watts

Visible Output: 4500 Lumens

Color Temperature: 6100K

Since being established in 1967, Ushio and its group companies have evolved to become a photonics solutions provider. Ushio continually invests in educating employees, technical capabilities, and its manufacturing sites across the globe to create solutions for their customers and solve problems with light.

Light solutions at Ushio can range from EUV Semiconductor light sources the size of a bus down to a sensor LED the size of a fingernail. Cinema lamps and laser light projectors are installed for the largest premium screens. Intelligent LED lighting for entertainment production to multispectral medical imaging systems. Architectural lighting creates a beautiful environment while horticulture lamps grow food in optimal conditions to save water and the environment. Care222® technology, developed and researched by Ushio, inactivates viruses when people are present. Ushio is one of the world’s largest specialty light source companies.

Ushio is fundamentally involved in all areas of the electromagnetic spectrum from extreme UV to visible to far IR. Our knowledge of wavelength, power, packaging, module, system as well as active and passive selection enables us to present the best solution for your application.

UXR® Series

Ceramic Xenon Lamps

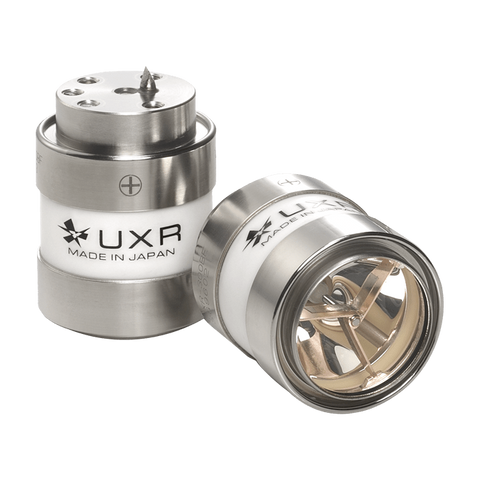

The Ushio UXR® Ceramic Xenon lamps are highly efficient, pre-aligned, parabolic reflectorized lamps for use in numerous scientific, medical and industrial illumination applications. The UXR features strong output reliability over life, highly stable 6100K color temperature, a compact and rugged ceramic to metal seal manufactured body and new window protection design. Manufactured at our ISO-certified plant, all UXR lamps are built to high quality standards for consistent and reliable performance.

Features & Benefits

• Rugged Compact Design
• Broad Continuous Spectral Output, High Color Rendering
• Superior Lumen Maintenance
• Demanding Quality Control and Manufacturing Aspects Produce Highly Consistent Lamp to Lamp Performance
• New Window Design Protects Against Scratching and Surface Contamination

Applications

• Endoscopy
• Surgical Headlights
• Microscopy
• Borescope
• Spectroscopy
• Visible / Infrared Searchlights
• Machine Vision
